ZCZ

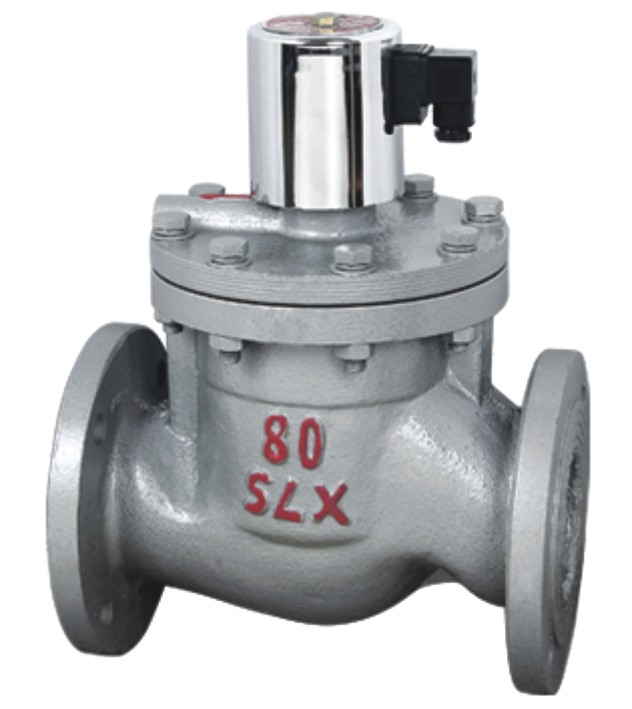

Zawory elektromagnetyczne ZCZ

Series 2/2-way solenoid valve

Body: brass, cast iron
Orifice Φ [mm]: 20 ~ 150
Pressure: 0,5 ~ 16 bar
Pipe connection:
Flange: DN40 ~ DN150
Media: water, hot water, air, gas, oil
Type: normally close

Technical parameters
1: Max Pressure: 1.6MPa <1.0MPa>
2: Operting differential pressure: 0.05 ~ 1.6MPa ≥ Φ65 0.1 ~ 1.6MPa <0.04- 1.0MPa>
3: Media: Liquid, gas, steam, oil<20CST
4: Media Temperature: ≤180°C <200 °C
5: Voltage AC:380V 220V 36V/50Hz DC:24V 110V 220V
6: Coils class: Class B
7: Power supply Tolerance -15% ~ +10%
8: Power Φ15 ~ Φ 50 24W Φ65~ Φ150 50W
9: Response Time Φ15 ~ Φ50 Open≤ 2s Clossed≤ 3s
                           Φ 65 ~  Φ 150 Open≤ 4s Clossed ≤5s
10: Mounting Position Flow as arrow, solenoid vertical and upright direction, pure
