BM, PU, AM
| Valve type: | 5/2 or 5/3 |
|---|---|
| CV: | 0,67-1,00 |
| Working pressure: | 0.15～0.8 MPa |
| Effective Cross Section Area | 12-25 mm2 |

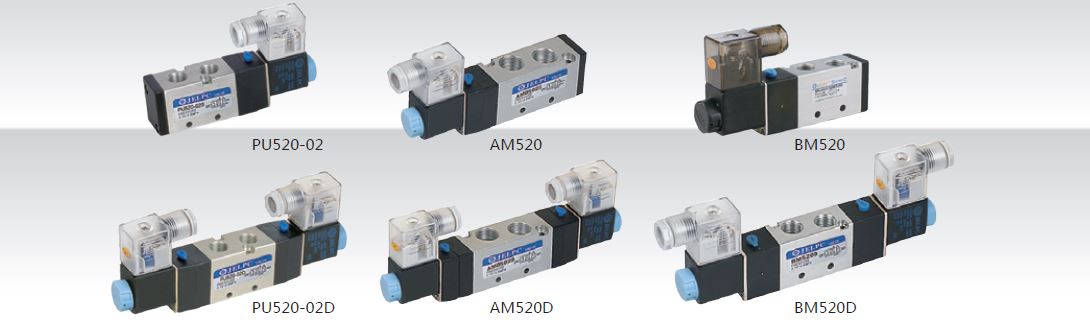

| Model | BM520 BM520D | BM520T | PU520-02 PU2D0- | PU530-02D | AM520 AM520D | AM520T | |
|---|---|---|---|---|---|---|---|
| Valve Type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | 5/2 way | 5/3 way | |
| Effective Cross Section Area | 16 mm2(CV=0.89) | 12 mm2(CV=0.67) | 16 mm2 (CV=0.89) | 12 mm2(CV=0.67) | 25 mm2 (CV=1.40) | 18 mm2(CV=1.00) | |
| Working Medium | 40 Micron Filtered Air | ||||||
| Operation | Internal Piloted | ||||||
| Working-pressure | 0.15-0.8 MPa | ||||||
| Max. Test Pressure | 1.2 MPa | ||||||
| Max. Ambient Temperature | 5-50 °C | ||||||
| Operating Voltage Tolerance | ± 10% | ||||||
| Power Consumption | AC: 5.5 VA DC: 4.8 W | ||||||
| Protect Class | F Class, IP 65 | ||||||
| Wiring / Connector | Cable / Lead Wire or DIN Connector | ||||||
| Switching Frequency | 5 Cycles / Sec. | ||||||
| Response Time | 0.05 Sec. | ||||||
