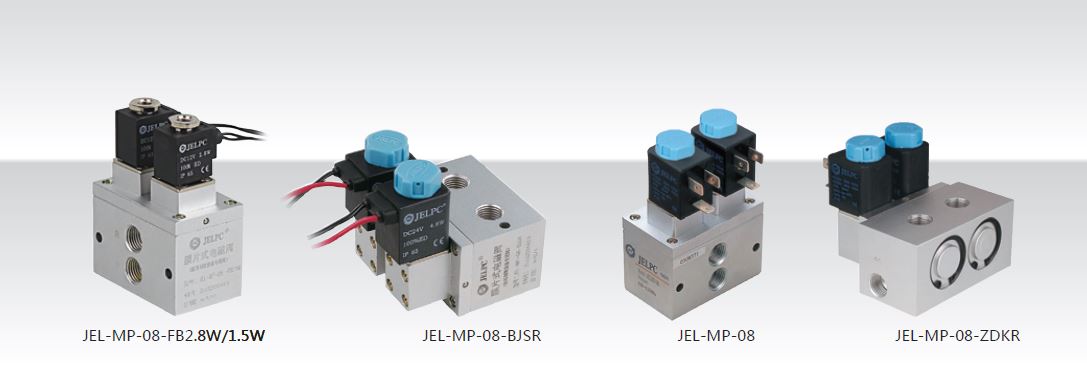

JEL series
| Valve type: | 4/2 |
|---|---|
| Working mednium: | 40 Micron Filtered Air |
| Working pressure: | 0.08～0.35 MPa |
| Max. Ambient Temperature: | 5～50 ℃ |
| Model | JELV521S | JELV521D | JELV531C (E/P) | JELV522S | JELV522D | JELV532C (E/P) | JELV523S JELV523D | JELV533C (E/P) | JELV524S | JELV524D | JELV534C (E/P) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JELA521S | JELA521D | JELA531C (E/P) | JELA522S | JELA522D | JELA532C (E/P) | JELA523S JELA523D | JELA533C (E/P) | JELA524S | JELV524D | JELA534C (E/P) | |
| Valve Type | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | |||
| Effective Cross Section Area | 12 mm2 (CV = 0.67) | 9 mm2(CV=0.5) | 14 mm2 (CV = 0.78) | 12 mm2(CV=0.69) | 25 mm2 (CV = 1.40) | 18 mm2(CV=1.00) | 50 mm2 (CV = 2.79) | 30 mm2(CV=1.68) | |||
| Working Medium | 40 Micron Filtered Air | ||||||||||
| Operation | Internal piloted | ||||||||||
| Working-pressure | 0.15-0.8 MPa | ||||||||||
| Max. Test Pressure | 1.2 MPa | ||||||||||
| Max. Ambient Temperature | 5-50 °C | ||||||||||
| Operating Voltage Tolerance | ± 10% | ||||||||||
| Power Consumption | AC: 5.5 VA DC: 4.8 W | ||||||||||
| Connector Protection | F Class, IP 65 | ||||||||||
| Wiring / Connector | Cable / Lead Wire or DIN Connector | ||||||||||
| Switching Frequency | 5 Cycles / Sec. | ||||||||||
| Response Time | 0.05 Sec. | ||||||||||
