MSVD
| Port size: | G 1/4’’, G 3/8", G 3/4", G1" |
|---|---|
| Working medium | Air |
| Ambience temperature | -5～50℃ |
| No. of port | 3 or 5 |

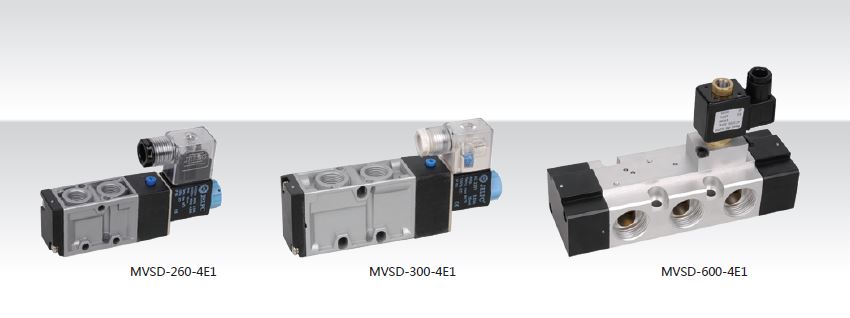

| Item | MVSD-260-4E1 | MVSD-260-4E2 | MVSD-260-4E2 (C.P.E) | MVSD-300-4E1 | MVSD-300-E2 | MVSD-300-4E2 (C.P.E) | MVSD-600-4E1 | MVSD-600-4E2 |
|---|---|---|---|---|---|---|---|---|
| No. of Position | 2 | 1 2 | 3 | 2 | 2 | 1 3 | 2 | |
| No. of Port | 5 | 3 | 5 | 5 | ||||
| Port Size | G 1/4" | G 3/8" | G 3/4" | G 1" | ||||
| Working medium | Air | |||||||
| Working Pressure | 0.2-0.7 MPa | 0.3-0.7 MPa | 0.2-0.7 MPa | 0.3-0.7 MPa | 0.2-0.7 MPa | |||
| Max. Test Pressure | 10 kgf/cm2 | |||||||
| Effective Cross Section Area | 18 mm2 | 16 mm2 | 35 mm2 | 25 mm2 | 20: 115 mm2 25: 135 mm2 | |||
| Ambient Temperature | -5~50°C (No Freezing) | |||||||
| Power Consumption | 1 AC: 5.5 VA DC: 4.8 W | AC: 13 VA DC: 10 W | ||||||
| Operating Voltage Tolerance | ± 10% | |||||||
| Insulation Class | IP 65, F Class | |||||||
