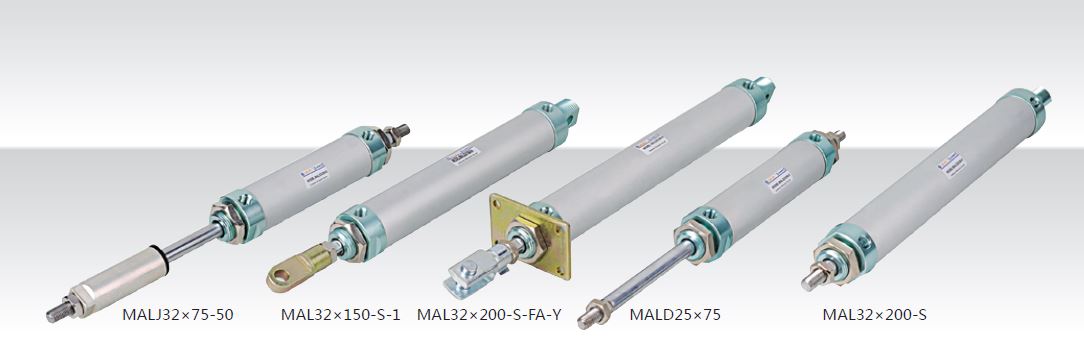

MAL
| Port size: | M5 x 0.8, G 1/8, G 1/4" |
|---|---|
| Operating Pressure Range: | 1～9.0 Kgf/cm2 |
| Operating Temperature Range: | 0～70 ℃ |
| Working Medium: | Air |
| Bore (mm) | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| Operation | Double Acting or Single Acting Air |
||||
| Working Medium | |||||
| Mountings | Basic LB FA SDB | ||||
| Operating Pressure Range | 1~9.0 Kgf/cm2 | ||||
| Proof Pressure | 13.5 Kgf/cm2 | ||||
| Operating Temperature Range | 0~70 ℃ | ||||
| Operating Speed Range | 50~800 mm/s | ||||
| Cushion | Gasket Cushioning | ||||
| Port Size | M5 x 0.8 | G 1/8" | G 1/4" | ||
