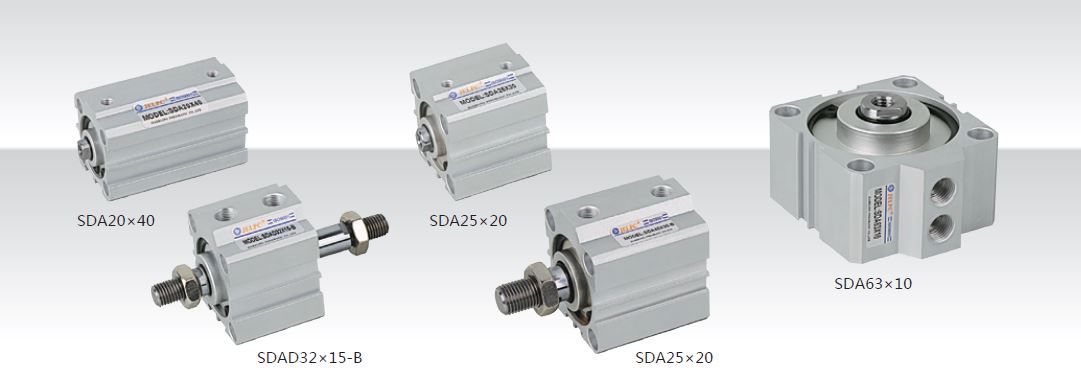

SDA
| Port size: | M5 × 0.8 G 1/8″ G 1/4″ G 3/8 |
|---|---|
| Proof Pressure: | 10.5 Kgf/cm2 |
| Operating Temperature Range: | 0～70 ℃ |
| Working Medium: | Air |
| Bore (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Operation | Double Acting | ||||||||||
| Single Acting Spring-out, Single Acting Spring-in | - | ||||||||||
| Working Medium | Air | ||||||||||
| Operating Pressure Range | Double Acting | 1~9.0 Kgf/cm2 | |||||||||
| Single Acting | 2~9 Kgf/cm2 | - | |||||||||
| Proof Pressure | 10.5 Kgf/cm2 | ||||||||||
| Operating Temperature Range | 0~70 ℃ | ||||||||||
| Operating Speed Range | Double Acting | 30~500 mm/s | 30-350 mm/s | 30-250 mm/s | |||||||
| Single Acting | 100-500 mm/s | - | |||||||||
| Port Size | M5 > | < 0.8 | | G 1/8" | | G 1/4" | G 3/8" | ||||||
