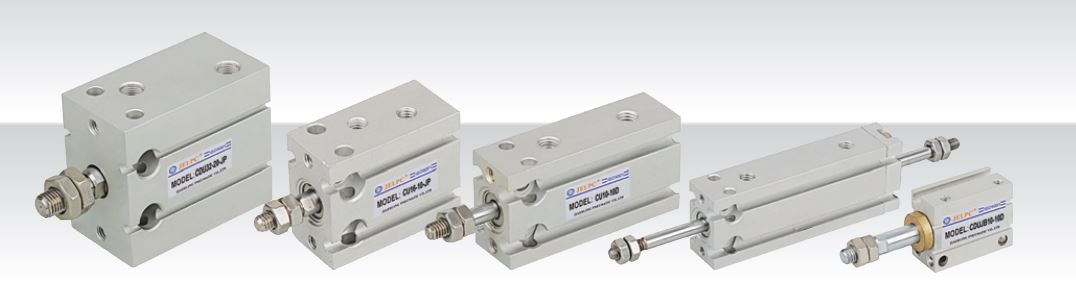

CDU
| Port size: | M5 x 0.8, 1/8 |
|---|---|
| Working pressure: | 0.7 MPa |
| Ambient and fluid temp: | 0～60 ℃ |
| Operating Fluid | Air |
| Bore (mm) | 6 10 16 | 20 25 | 32 |
|---|---|---|---|
| Operating Fluid | Air | ||
| Operation | D: Double Acting, S: Single Acting (Spring-in), T: Single Acting (Spring-out) | ||
| Max. Operating Pressure | 0.7 MPa | ||
| Proof Pressure | 1.0 MPa | ||
| Ambient and fluid temp | 5 ~60 ℃ | ||
| Cushion | Both end with Rubber Gasket Cushioning | ||
| Lubricant | Non-lub | ||
| Installation Type | Free (Multi- installation) | ||
| Precision non-rotating rod | ± 0.8° | ± 0.5° | |
| Port Size | M5 x 0.8 | 1/8 | |
