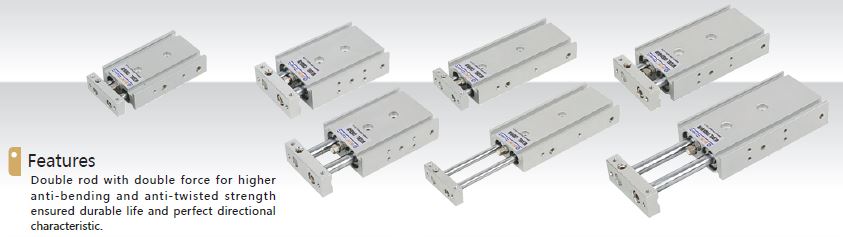

CXS
| Port size: | M5 x 0.8, 1/8 |
|---|---|
| Max. Operation Pressure: | 0.7 MPa |
| Ambient and fluid temp: | 5～60 ℃ |
| Operation Fulid: | Air |
| Bore (mm) | 6 | 10 | 15 | 20 | 25 | 32 |
|---|---|---|---|---|---|---|
| Operation Fulid | Air | |||||
| Operation | Double Acting | |||||
| Proof Pressure | 1.05 MPa | |||||
| Max. Operation Pressure | 0.7 MPa | |||||
| Ambient and fluid temp | 5 ~60 ℃ | |||||
| Buffer | Both end Rubber Gasket Cushioning | |||||
| Piston Speed | 30-800 mm/s | 30-800 mm/s | 30-700 mm/s | 30-600 mm/s | ||
| *Lubrication | Non-lub | |||||
| Adjustable stroke range | Returned Stroke 0~-5 mm | |||||
| Bearing | Slidable bearing/Ball Bearing | |||||
| Non-rotating Slidable bearing | ± 0.1° | |||||
| rod precision Bali Bearing | ±0.1° | |||||
| Port Size Rc | M5 x 0.8 | 1/8 | ||||
| Structure | Double Cylinder (Double force) | |||||
