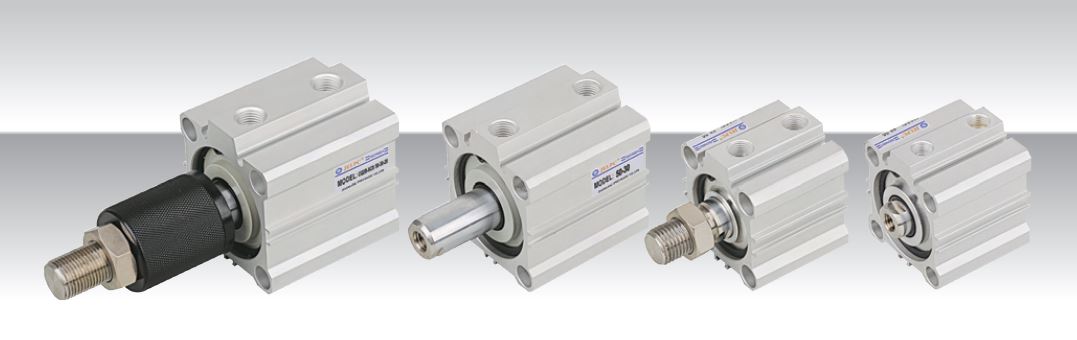

CQ2
| Port size | M5 x 0.8, 1/8, 1/4, 3/8 |
|---|---|
| Max. Operating Pressure: | 1.0 MPa |
| Ambient and Fluid Temperature | 5～60 ℃ |
| Operating Fluid | Air |
| Bore (mm) | 12 16 20 25 32 40 50 63 | 80 100 |
|---|---|---|
| Operating Fluid | Air | |
| Operation Proof Pressure Max. Operating Pressure | Double Acting/ Single Acting: Spring-in, Spring-out 1.5 MPa 1.0 MPa | |
| Ambient and Fluid Temperature | 5°C-60 °C | |
| Piston Rod Thread Cushion | Female thread (Standard), Male thread (Optional) Non-lub | |
| Piston Acting Speed | 50-500 mm/s | |
| Tolerance Stroke | It h'o ! + | |
| Lubricant | Non-Lub | |
| Installation | Through Hole (Standard), Two side dove talls (Optional) | |
| Port Size | M5 x 0.8 1/8 | 1/4 | 3/8 |
