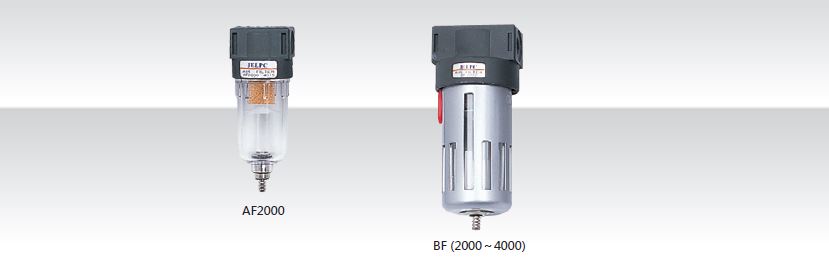

AF, BF
| Port size: | G 1/8”, G 1/4”, G 3/8", G 1/2" |
|---|---|
| Max. Adjustable Pressure | 1.5 MPa |
| Operating Temperature Range | 5～60 ℃ |
| Operating Fluid | Air |
| Model | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 | ||
|---|---|---|---|---|---|---|---|
| Operating Fluid | Air | ||||||
| Port Size | G 1/8" | G 1/4" | G 1/4" | G 3/8" | G 1/2" | ||
| Filter Precision | 40μ | ||||||
| Ensured Pressure Resistance | 1.5 MPa | ||||||
| Operating Temperature Range | 5-60 ℃ | ||||||
| Capacity of Filter Cup | 15 cc | 60 cc | |||||
| Weight | 0.14 KG | 0.33 KG | |||||
| Material | Body | Aluminum Die-casting Forming | |||||
| Container Cup | PC | ||||||
| Protective Cover | Iron | ||||||
