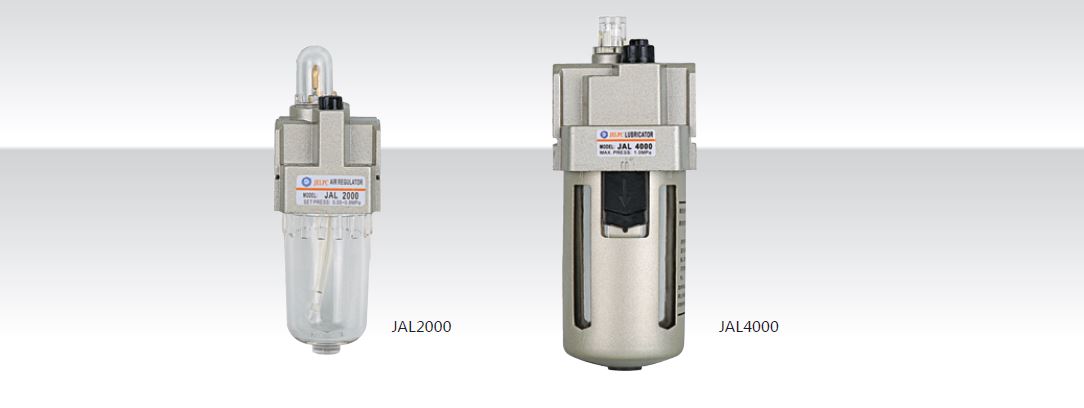

JAL
| Port size: | M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1 |
|---|---|
| Ensured Pressure Resistance: | 15 MPa |
| Max. Adjustable Pressure: | 5～60 ℃ |
| Container Material: | Poly Carbonate |
| Model | JAL1000-M5 | JAL2000-01 | JAL2000-02 | JAL3000-02 | JAL3000-03 | JAL4000-03 | JAL4000-04 | JAL4000-06 | JAL5000-06 | JAL5000-10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Flow | 95 | 800 | 800 | 1700 | 1700 | 5000 | 5000 | 6300 | 7000 | 7000 |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Max. Adjustable Pressure | 1.0 MPa | |||||||||
| Ensured Pressure Resistance | 15 MPa | |||||||||
| Operating Temperature Range | 5~60 C | |||||||||
| Suggested Lubricating oil | 0.05-0.7 MPa | ISO VG 32 | ||||||||
| Container Material | Poly Carbonate | |||||||||
| Container Cup | Not Available | Iron | ||||||||
