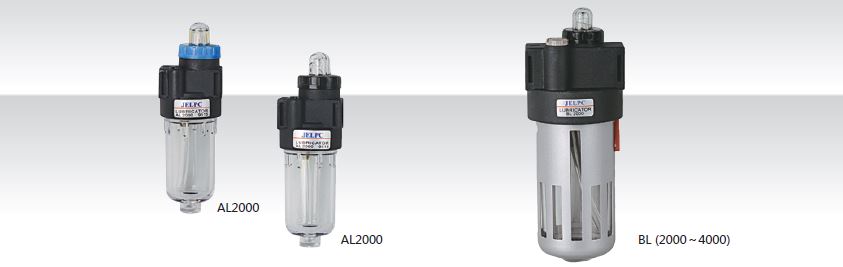

AL, BL
| Port size | G 1/8”, G 1/4”, G 3/8", G 1/2" |
|---|---|
| Operating Fluid | 1.5 MPa |
| Ensured Pressure Resistance | 5～60 ℃ |
| Operating Fluid | Air |
| Model | AL1500 AL2000 | BL2000 BL3000 BL4000 | |||
| Operating Fluid | Air | ||||
| Port Size | G 1/8" G 1/4" | G 1/4" G 3/8" G 1/2" | |||
| Range of Adjustable Pressure | 1.5 MPa | ||||
| Ensured Pressure Resistance | 5-60 °C | ||||
| Operating Temperature Range | ISO VG’32 or Same Grade Oil | ||||
| Capacity of Filter Cup | 25 cc | 90 cc | |||
| Weight | 017 KG | 0.25 KG | |||
| Body | Aluminum Die-casting Forming | ||||
| Material | Container Cup | PC | |||
| Protective Cover | Iron | ||||
