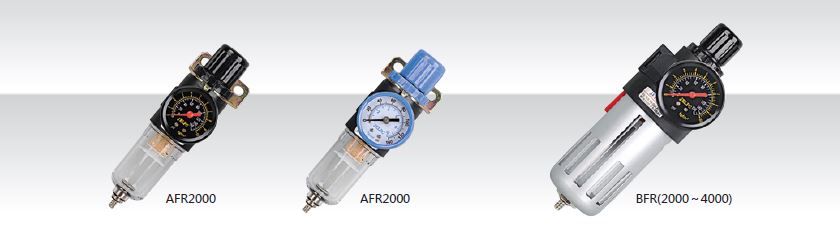

AFR, BFR
| Port size: | G 1/8”, G 1/4”, G 3/8", G 1/2" |
|---|---|
| Ensured Pressure Resistance | 1.5 MPa |
| Operating Temperature Rang | 5～60 ℃ |
| Operating Fluid | Air |
| Model | AFR1500 AFR2000 | BFR2000 BFR3000 BFR4000 | |||
| Operating Fluid | Air | ||||
| Port Size | G 1/8" | G 1/4" | G 1/4" | G 3/8" G 1/2" | |||
| Range of Adjustable Pressure | 0.05-0.85 MPa | ||||
| Max. Adjustable Pressure | 0.95 MPa | ||||
| Ensured Pressure Resistance | 1.5 MPa | ||||
| Operating Temperature Range | 5-60 ℃ | ||||
| Capacity of Filter Cup | 15cc | 60 cc | |||
| Weight | 0.26'kg | 0.4KG | |||
| Body | Aluminum, Die-casting Forming | ||||
| Material | Container Cup | PC | |||
| Protective Cover | Iron | ||||
