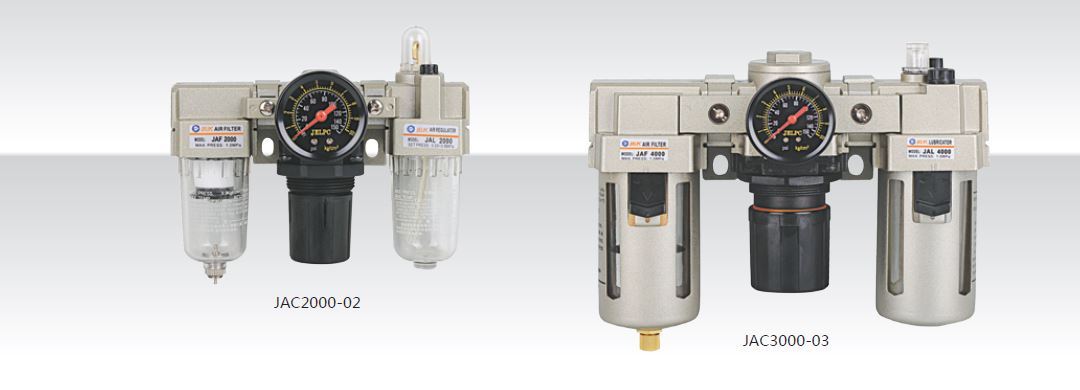

JAC
| Port size: | G 1/8”, G 1/4”, G 3/8", G 1/2", M5 , 1 |
|---|---|
| Ensured Pressure Resistance: | 1.5 MPa |
| Operating Temperature Range: | 5～60 ℃ |
| Filter Precision: | 25 μm |
| Model | JAC1000-M5 | JAC2000-01 | JAC2000-02 | JAC2500-02 | JAC2500-03 | JAC3000-02 | JAC3000-03 | JAC4000-03 | JAC4000-04 | JAC4000-06 | JAC5000-06 | JAC5000-10 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Flow Port Size |
90 | 500 | 500 | 1500 | 1500 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 | |
| M5 | 1/8 | 1/4 | 1/4 | 3/8 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | ||
| Filter Precision | 25 μm | ||||||||||||
| Max. Adjustable Pressure | 1.0 MPa | ||||||||||||
| Ensured Pressure Resistance | 1.5 MPa | ||||||||||||
| Operating Temperature Range | 5~60 C | ||||||||||||
| Range of Adjustable Pressure | 0.05-0.7 MPa | 0.05-0.85 MPa | |||||||||||
| Suggested Lubricating oil | ISO VG 32 | ||||||||||||
| Container Material | Poly Carbonate | ||||||||||||
| Protective Cup Cover | Not Available | Iron | |||||||||||
| Drain Function | Differential Drain | Differential Drain, Automatic Drain | |||||||||||
| Valve Type | With Overflow | ||||||||||||
| Assembly | Filter | JAF1000-M5 | JAF2000-01 | JAF2000-02 | JAF3000-02 | JAF3000-02 | JAF3000-02 | JAF3000-03 | JAF4000-03 | JAF4000-04 | JAF4000-06 | JAF5000-06 | JAF5000-10 |
| Regulator | JAR1000-M5 | JAR2000-01 | JAR2000-02 | JAF2500-02 | JAF2500-02 | JAR3000-02 | JAR3000-03 | JAR4000-03 | JAR4000-04 | JAR4000-06 | JAR5000-06 | JAR5000-10 | |
| Lubricator | JAL1000-M5 | JAL2000-01 | JAL2000-02 | JAL3000-02 | JAL3000-02 | JAL3000-02 | JAL3000-03 | JAL4000-03 | JAL4000-04 | JAL4000-06 | JAL5000-06 | JAL5000-10 | |
