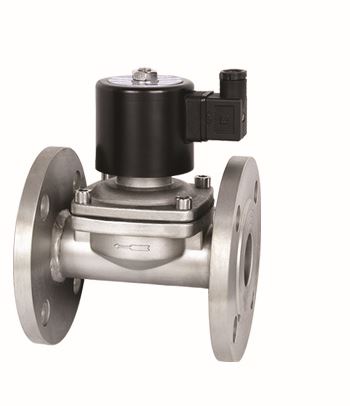

ZS flange type

Zawory elektromagnetyczne ZS kołnierzowe

2/2-way large diameter direct acting solenoid valve

Body: stainless steel 304 lub 316
Orifice Φ [mm]: 25 ~ 100
Pressure: 0 ~ 10 bar
Medium: water, hot water, air, gas, oil
Type: normally close, normally open

1: 2-Way normally dosed solenoid valve, Closed when de-energized, open when energized.
2: Serialized products, small in size, large flow rate, widely use
3: Body material: forged brass.cast brass ( for orifice 032, 40, 60 olny )
4: Ambient Temp. 0-65℃,Flulds Temp:VC-120℃.
5: Flow as the arrow, mounts in any position; Best position is Solenoid vertical and upright direction.
6: Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12VDC; Voltage Tolerance: +10% to -10% applicable voltage
7: Coil can fix Germany Nass Coil, for orifice under 4) 16-25mm only
8: This series valves are offered NBR, V1TON. EPDM etc for Seals and diaphragm to provide on-off control of various fluids.
