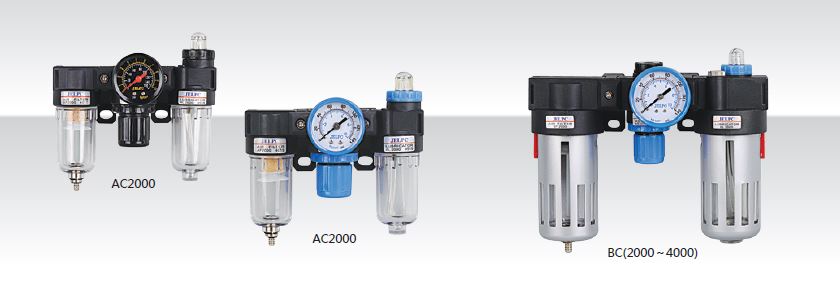

AC, BC
| Port size: | G 1/8”, G 1/4”, G 3/8", G 1/2" |
|---|---|
| Max. Adjustable Pressure: | 0.95 MPa |
| Working temp. | 5～60 ℃ |
| Working mednium | Air |
| Model | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | |
|---|---|---|---|---|---|---|
| Operating Fluid | Air | |||||
| Port Size | G 1/8" | G 1/4" | G 1/4" | G 3/8" | G 1/2" | |
| Filter Precision | 40 m | |||||
| Range of Adjustable Pressure | 0.05-0.85 MPa | |||||
| Max. Adjustable Pressure | 0.95 MPa | |||||
| Ensured Pressure Resistance | 1.5 MPa | |||||
| Operating Temperature Range | 5-60 ℃ | |||||
| Capacity of Filter Cup | 15 cc | 60 cc | ||||
| Capacity of oil Cup | 25 cc | 90 cc | ||||
| Suggested Lubricating oil | ISO VG 32 or Same Grade Oil | |||||
| Weight | 0.7 KG | 0.9 KG | ||||
| Material | Body | Aluminum Die-casting Forming | ||||
| Container Cup | PC | |||||
| Protective Cover | - | Iron | ||||
| Composed Elements | Filter Regulator | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
