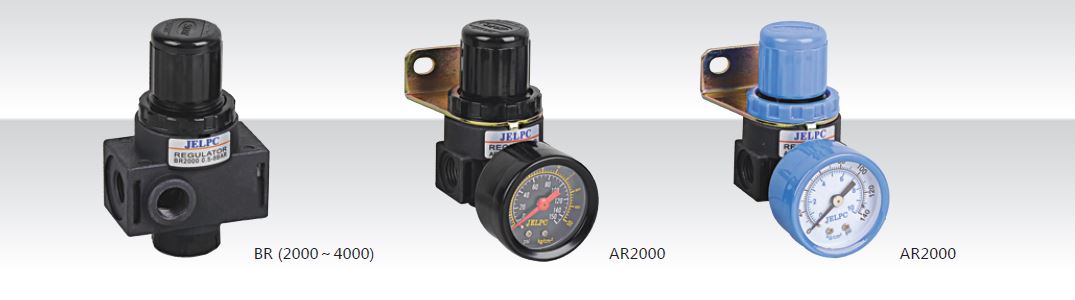

AR, BR
| Port size | G 1/8”, G 1/4”, G 3/8", G 1/2" |
|---|---|
| Ensured Pressure Resistance | 1.5 MPa |
| Operating Temperature Range | 5～60 ℃ |
| Operating Fluid | Air |
| Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 |
|---|---|---|---|---|---|
| Operating Fluid | Air | ||||
| Port Size | G 1/8" | G 1/4" | G 1/4" | | G 3/8" ] | G 1/2" |
| Range of Adjustable Pressure | 0.05-0.85 MPa | ||||
| Max. Adjustable Pressure | 0.95 MPa | ||||
| Ensured Pressure Resistance | 1.5 MPa | ||||
| Operating Temperature Range | 5-60 C | ||||
| Weight | 0.20 KG | 0.23 KG | |||
| Body Material | Aluminum, Die-casting Forming | ||||
