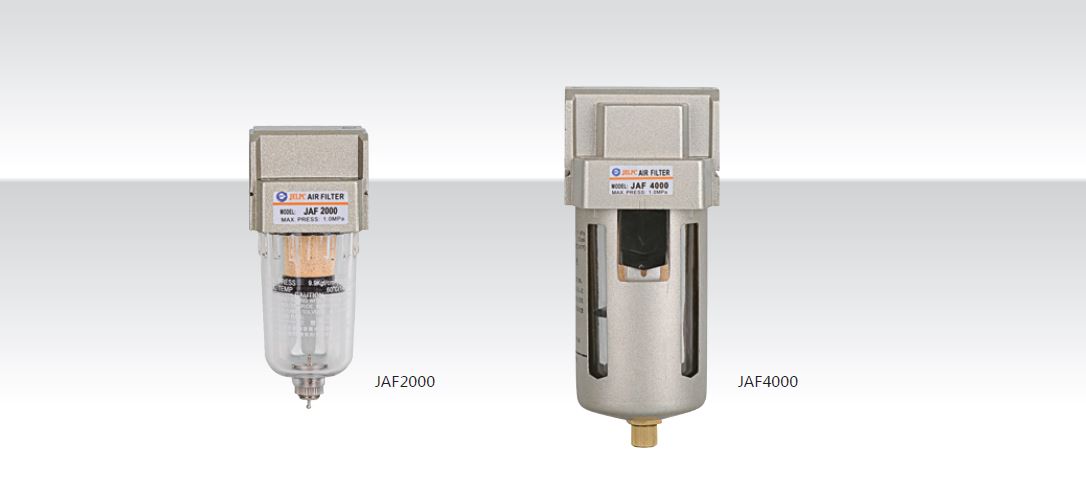

JAF
| Port size: | M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1 |
|---|---|
| Filter Precision: | 25 μm |
| Ambient Temperature Range: | 5～60 ℃ |
| Max. Adjustable Pressure: | 1.0 MPa |
| Model | JAF1000-M5 | JAF2000-01 | JAF2000-02 | JAF3000-02 | JAF3000-03 JAF4000-03 | JAF4000-04 | JAF4000-06 | JAF5000-06 | JAF5000-10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Flow | 110 | 750 | 750 | 1500 | 1500 | 4000 | 4000 | 6000 | 7000 | 7000 |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Filter Precision | 25μm | |||||||||
| Max. Adjustable Pressure | 1.0 MPa | |||||||||
| Ensured Pressure Resistance | 1.5 MPa | |||||||||
| Ambient Temperature Range | 5~60 °C | |||||||||
| Container Material | Poly Carbonate | |||||||||
| Container Cup | Not Available | Iron | ||||||||
| Drain Function | Differential Drain | Differential Drain, Automatic Drain | ||||||||
